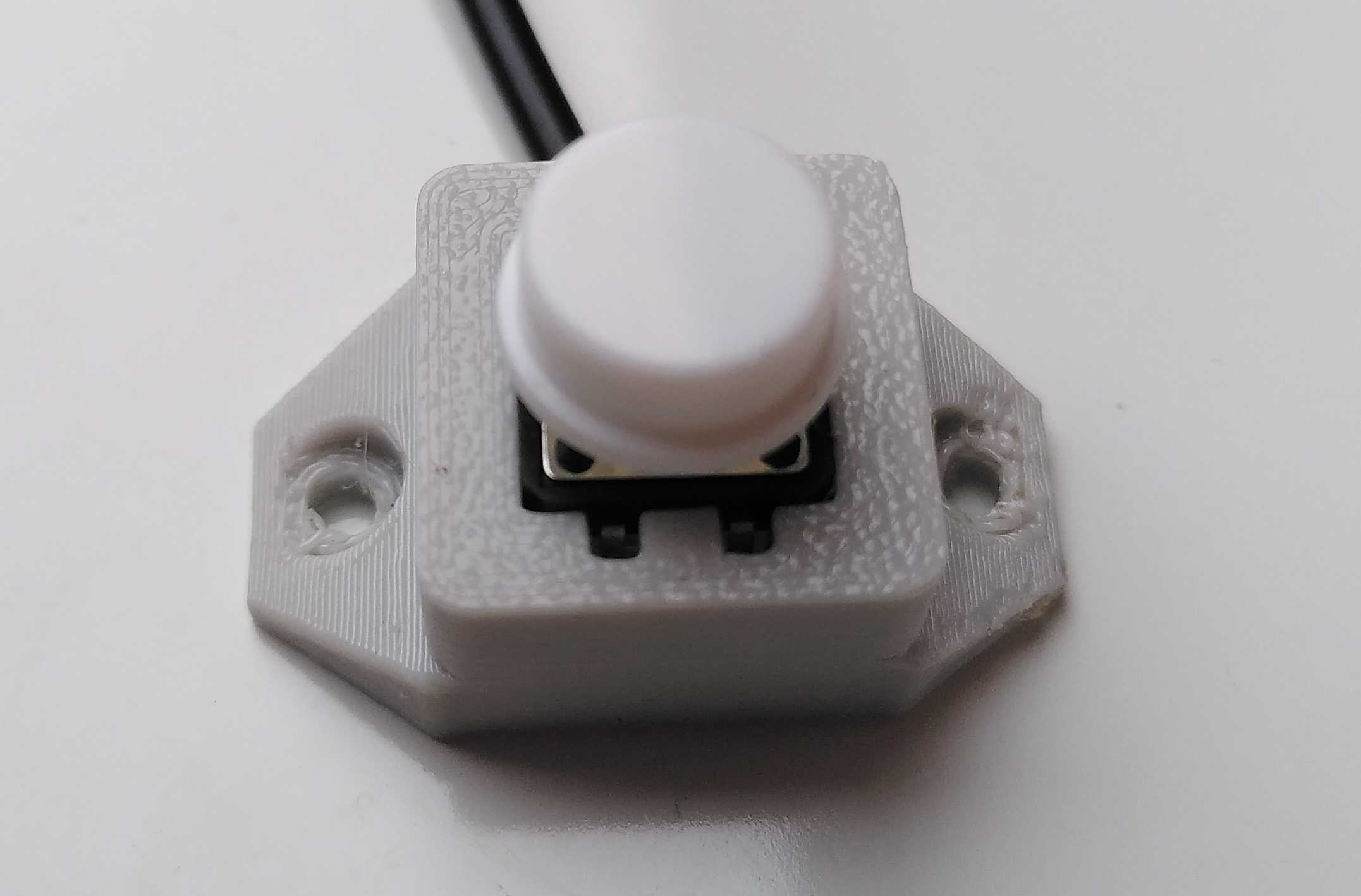

After I had wired up a simple push button to a bread board, I wanted to 'level up' and attach it to a surface. So I created a simple single electronics push button box/mount.

  • You probably can get away without support, but I did use some.
  • Bottom is open so you can easily pull the wires through.

Happy to get your feedback on how to improve.

Update: Added a version for 2 buttons. It also has some minor tweaks like larger flaps for the screws. On request I can also make those tweaks to the other version.
