Castor Adils Adaptor.

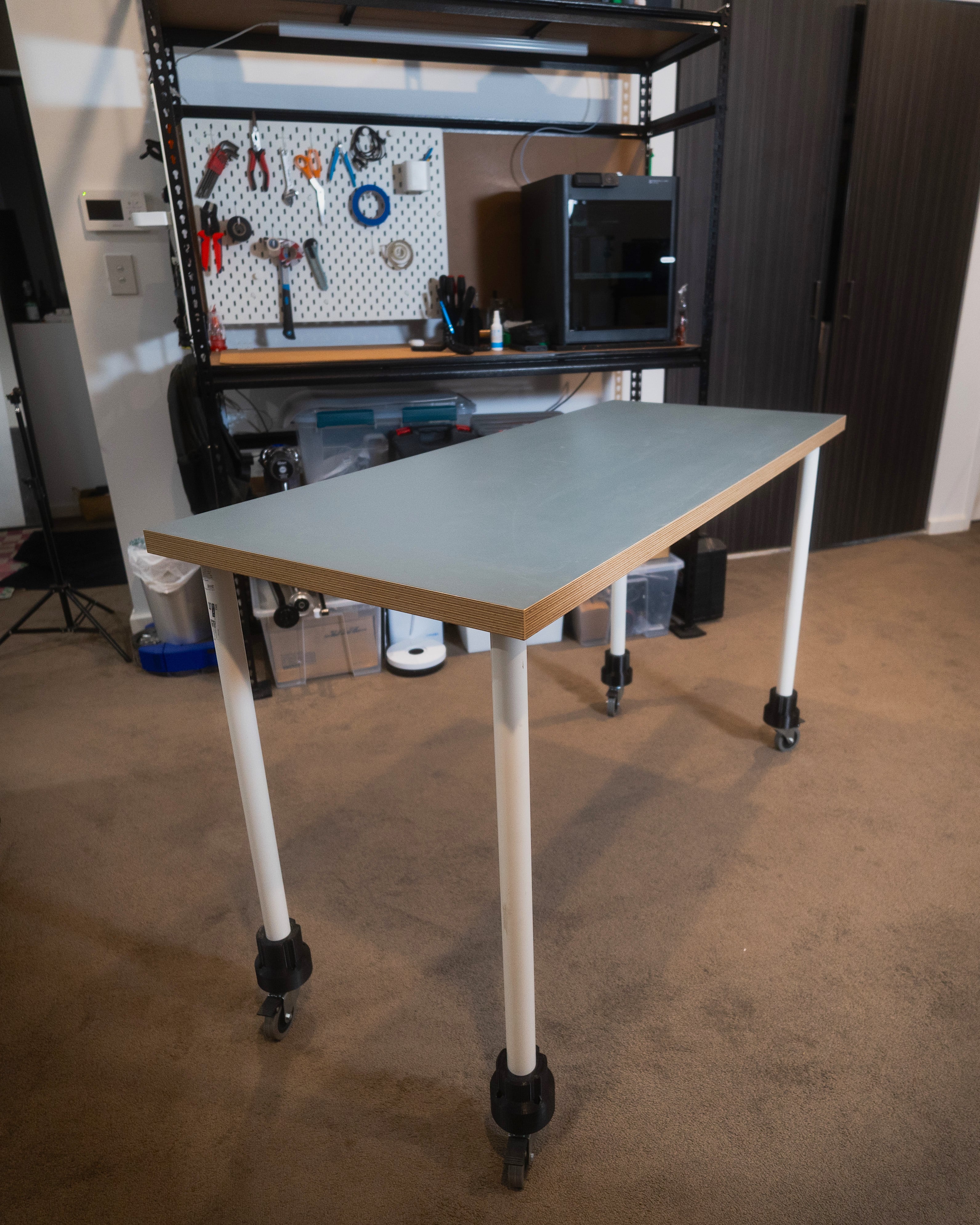

This is the 3d printable adaptor I designed to put castor wheels on Ikea ADILS. I got an inspiration to turn a Ikea Desk into a workbench on wheels as I need a workbench that I can use in my apartment.

BOM of the project

  • Castor wheels: 75x21mm(65mm plate)

  • Screw: M6x 35mm ( takes 4 each)

  • Nuts: M6

Link to castor wheel I used in the project: https://www.supercheapauto.com.au/p/sca-sca-castor-wheel---75-x-21mm-plastic-brake-swivel/340455.html#q=castor%2Bwheels&lang=en_AU&start=12

P.S. Please note that it will not fit other castor wheels with different plate style (I have attached the drawing with dimensions in the last photo)
