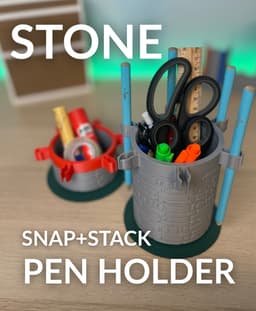

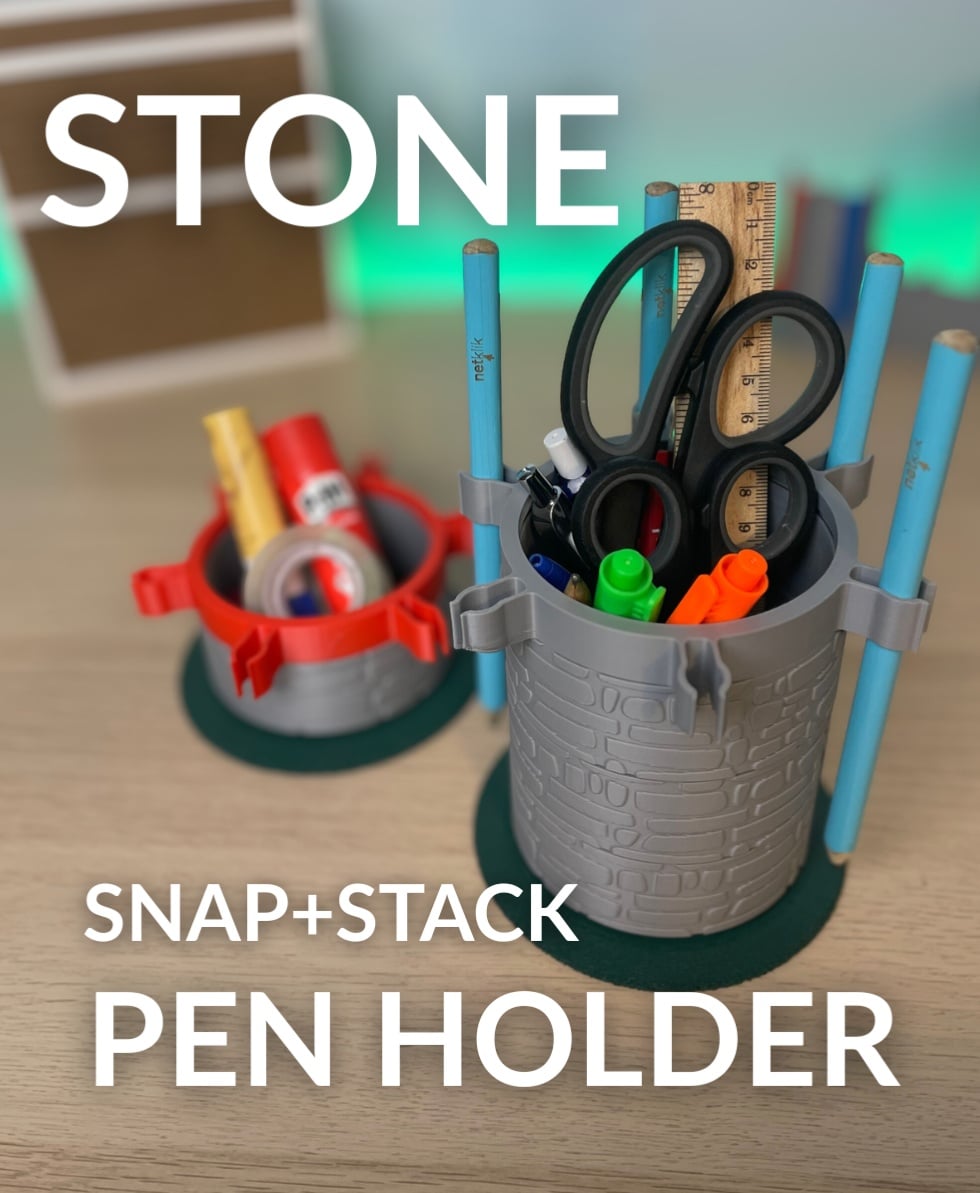

🏰 Snap+Stack Stone Pen Holder 🖋️

Build the ultimate desk organizer tower! This modular, stone-textured cup lets you screw together as many layers as you want to reach the perfect height. Plus, the brilliant top ring features snap-fit clips to hold your most-used pens right on the outside!

💡 This is the perfect matching companion piece to my Castle Wall Bookends!

The Modular System: • 🌱 The Base: An optional solid base plate styled to look like a grass patch for the tower to sit on. • 🧱 Stone Walls: The main cylinders. Each one is 40 mm tall, adding 30 mm of height to your tower every time you stack one on! • 📎 The Clip Ring: A top rim featuring flexible snap-clips to display your pens.

Why It's Awesome: • 🔄 Threaded Assembly — Parts screw together easily and securely. The threads are designed large enough to print flawlessly on almost any machine. • 🖍️ Expandable Snap Clips — The side holders have an 8 mm diameter but are designed to flex and tightly grip a huge variety of pen, pencil, and marker sizes. • 📏 Roomy Interior — A generous 78 mm inner diameter gives you plenty of space for scissors, rulers, and bulkier tools inside the tower. • 🚫 Zero Supports Needed — Print it flat, screw it together, and you are done!

📐 Dimensions & Details: Inner Capacity: 78 mm diameter | Wall Height: 40 mm (Adds 30 mm per stacked layer) | Pen Clips: 8 mm (Flexible/Expandable)

🖨️ Slicing Tips:Layer Height: Set to 0.24 mm. This gives a great balance of quick printing time, strong threads, and excellent stone texture. • Infill: Drop it down to 8% Gyroid to save on filament—the cylindrical walls provide plenty of natural strength! • Supports: OFF. No supports needed anywhere!
