Tolerence test square and circle
8 downloads · 3 years ago · A tolerence test for square and circular holes, horizontal and vertical. The key is 5mm in diameter
A tolerence test for square and circular holes, horizontal and vertical. The key is 5mm in diameter (circle) and the square is 5mm size. THe test tests from 5.0mm to 5.4mm tolerences, the side with a small hole is 5.0, and it goes up from there.
Basic Shapes
Gonggi Stones Multi-Pack!
Horizontal Spool Holder 608
FREE Vaniso Basic tolerance test ring
Tolerance Test

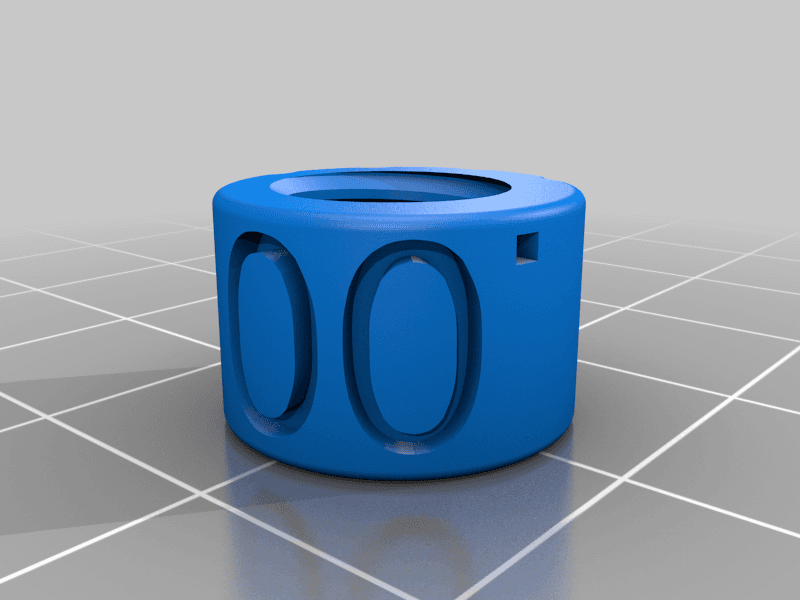

Screw Tolerance Test Kit + STEP FILE
