A parametric label holder for shelves, bookshelves, desks, etc. This model is fully customizable and can be made in any size you need (Note: You will need Autodesk Fusion for this.) The benefit of a system like this is that you can swap and move labels around easily, and make labels that are larger than the surface themselves. (Note: Do Not print the provided stl file. I only included it so the model can be viewed easily online.) Here is a Youtube video that goes into more detail about this project: https://youtu.be/U6pmwk05BGA
How to customize the model:
-
Download the file “Parametric_Label_Holder.f3d”
-

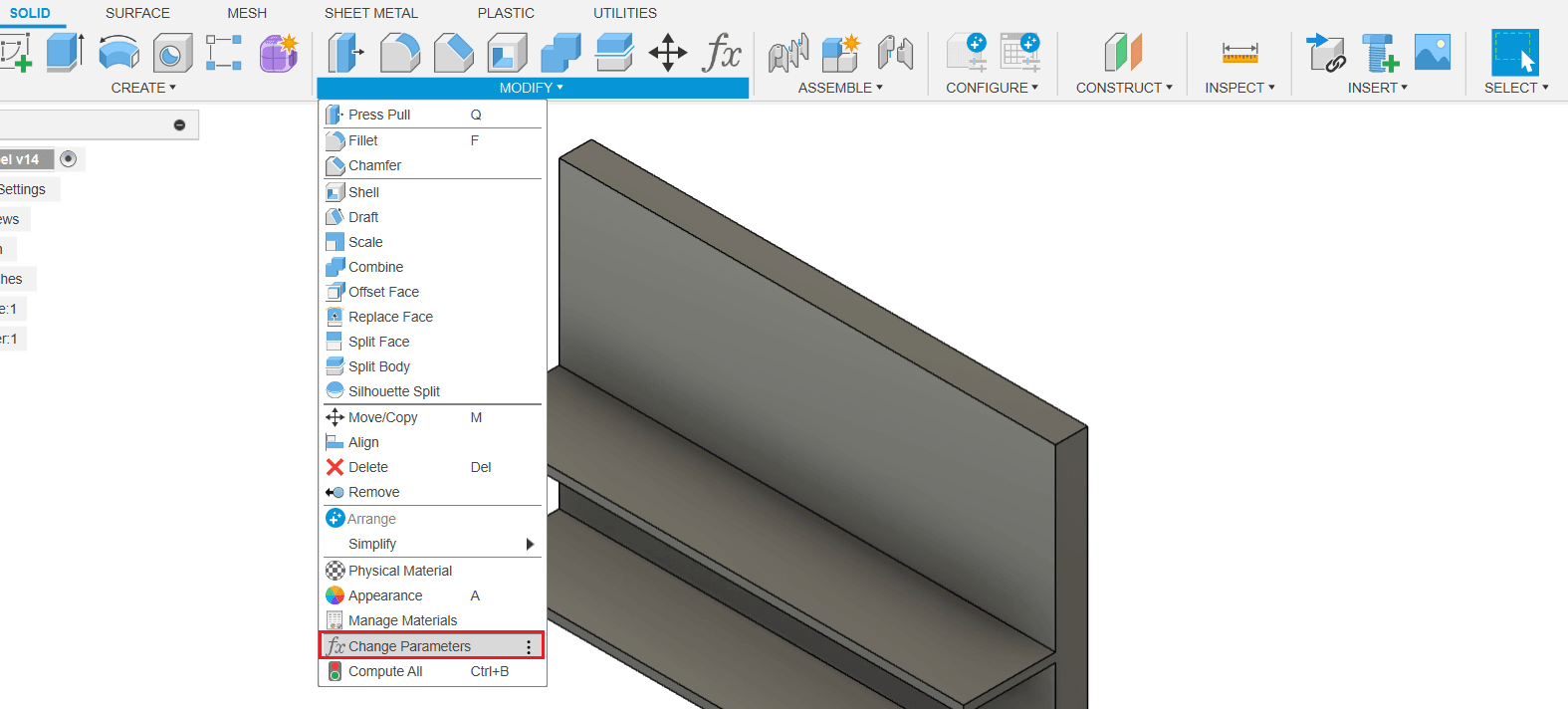

Click on “Change Parameters” under the Modify section (image 4).
-
Change the parameters as follows (all parameters are measured in millimeters):
Connector_Height: Measure the height of whatever you are connecting the model to and set that as this parameter.
Label_Length and Label_Height: You can pick whatever values you want for these. Note that these parameters control the size of the label and not the model itself.
For further clarification, view the diagram (image 5).
I recommend printing the model with the left side down (supports may be needed).
