LM2596 Housing

by
DeepMakes
Follow
Follow
Remix Model
D
DeepMakes
|
Image 1 of 3
LM2596 Housing 3d model
D
DeepMakes
|
Image 1 of 3
LM2596 Housing 3d model
2D
3D
Makes
LM2596 Housing 3d model
LM2596 Housing 3d model
LM2596 Housing 3d model
This model is restricted by licensing terms.

Needed a housing for this: https://a.co/d/756eKUQ

I had a couple small screws laying around to use which explains the holes in the housing, but friction fit was good enough to keep everything together. Will be removing those in a future update for aesthetics.

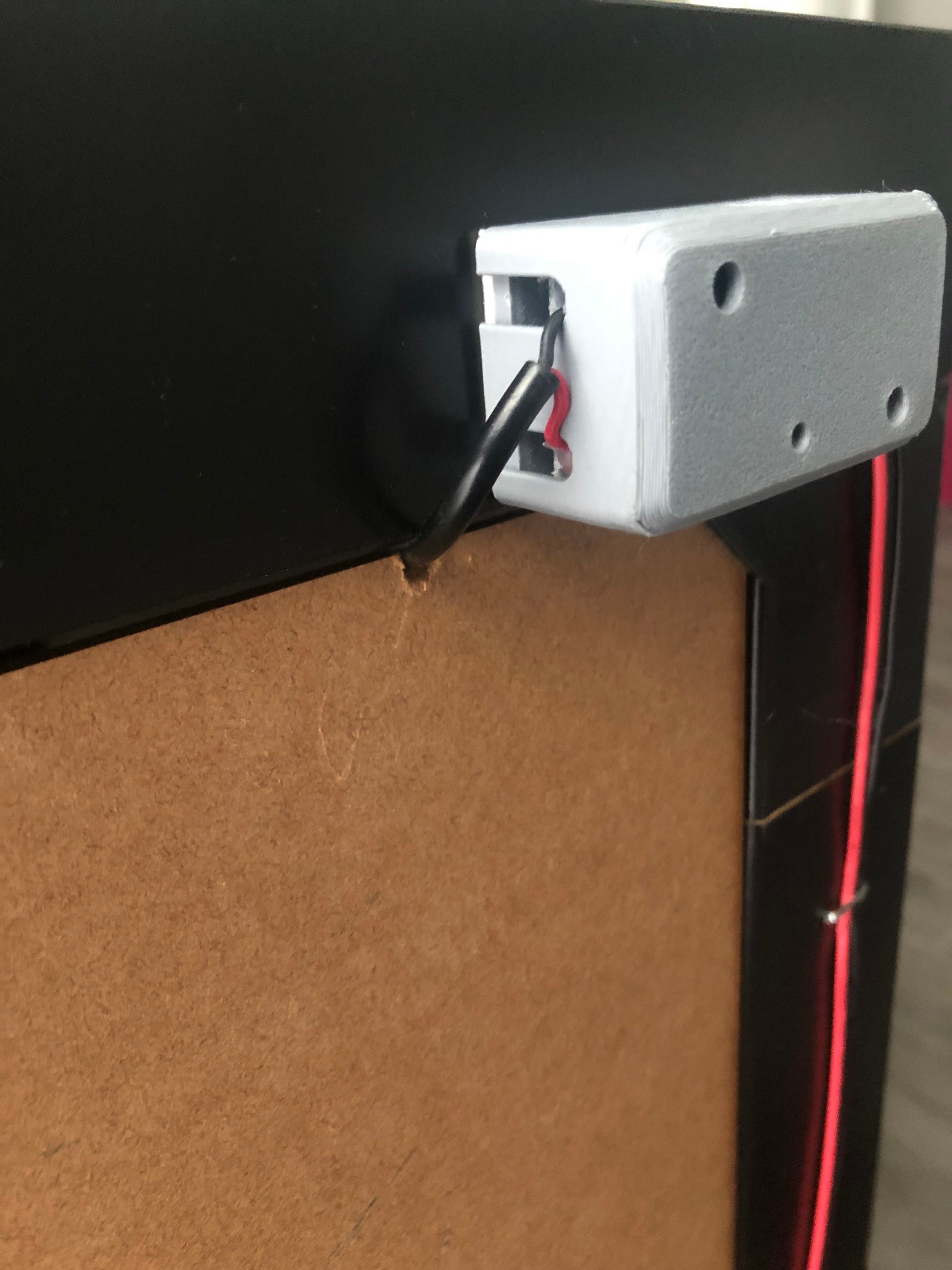

If you want you can just use the baseplate as it has retention clips to hold the pcb in place. Stuck it to my lack table enclosure with double sided tape and it's held up great.


3 Likes4 DownloadsJune 21, 2023
