Information These resistor boxes are compatible with Gridfinity and have been designed in accordance with the following specification https://gridfinity.xyz/specification/
The resistor boxes are designed for standard metal film or carbon fibre resistors. The boxes are available in the E12 series values from 1Ohm to 1MOhm and 10MOhm.

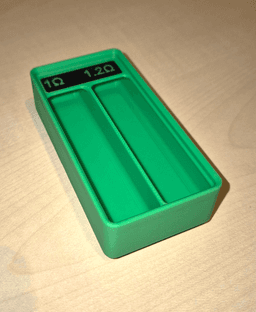

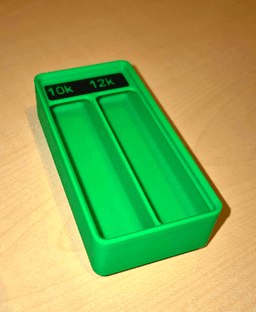

There are always two values together, for example 1Ohm and 1.2Ohm as well as 2.2kOhm and 2.7kOhm, a special exception is 1MOhm, which I have combined with 10MOhm, as the other MegaOhm values are not used very often.
The font is out of the way and other boxes can be stacked on top.
Size Grid 1x2 Height 3u
Important to read before printing Do not forget to fill in the background area for the font in the slicer, otherwise the font will not be easy to read.
