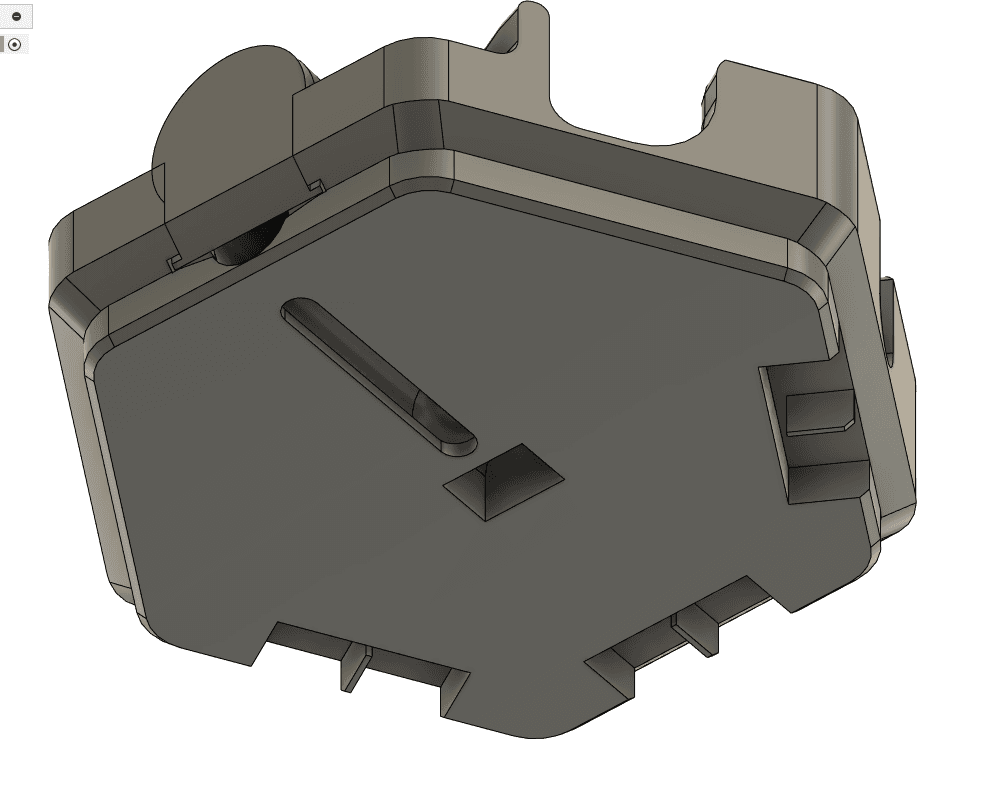

Hextraction - Shrink Ray (5mm Ball Storage) - View of the bottom with slot to remove 5mm bearings manually. - 3d model
Hextraction - Shrink Ray (5mm Ball Storage) - Ray Gun is a separate piece with two 2mm holes to place filament pieces for alignment. - 3d model
Hextraction - Shrink Ray (5mm Ball Storage) - Back view of the storage cover. There's a slot to insert a 6mm x 2mm magnet
 - 3d model
Hextraction - Shrink Ray (5mm Ball Storage) 3d model

A modification of Zack's Shrink Ray tile where the 5mm bearings can be stored. The ray gun is a separate piece for multi-color printing (for those that don't have multi-color printers). Filament pieces are used as dowels and/or register keys to attach the ray gun.

The sliding door can be fitted with a pair of 6mm x 2mm magnets, and there's a slot on the bottom for a pair of magnets to keep the balls from rattling around (but this might affect ball movement along the tile track). So that last part is optional.

There's also a slot in the bottom to allow you to pry out any stuck 5mm balls with a pin or toothpick.

Lastly, I modified the text of the card to be larger and have a font that feels a bit fitting for the tile's theme.

Original Tile: https://than.gs/m/863264
