One piece 5-32 Hextraction plate + stable tri-leg system

Print this 32 slot hextraction board in one piece on a minimum 350x350mm build are printer. I also designed a much more stable 3-point leg system, which can be taken apart for better mobility: • 6+7+6+7+6 (32) board plate (compatible with standard on and off ramps) • one-piece 5 segment leg (can be screwed to the bottom triangle) • one piece triangle with 2 segment leg attached

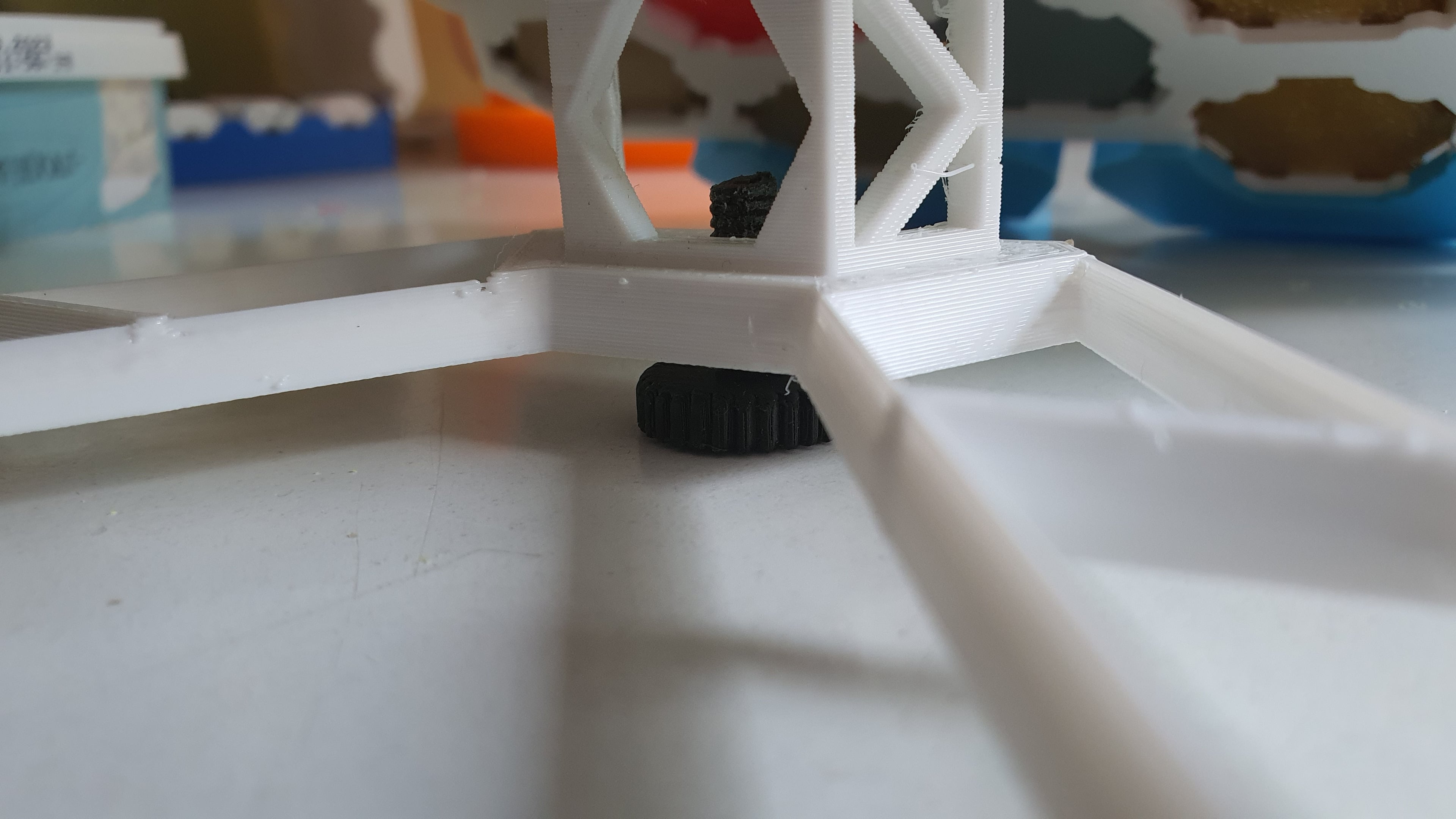

Use the standard universal foot (or any bolts) to level the triangle and the off ramps. See photo of my setup.


Discussions
C
cybermax52

Is this scaled down to 80 %
