Hextraction Nut And Bolt Tile

A screwy tile for Zack Freedman's Hextraction. This tile is optionally a combo tile or a mechanical tile. Play the halves together or separate.

If played together, it's a mechanical tile with moving parts! You may unscrew the bolt to any position you like. The bolt half has a tab that blocks travel in the nut half, so you can create a variety of paths. The threads will be a little loose, so don't expect it to stay where you left it.

If played separately, it's a combo piece. Follow normal combo rules about tile placement and destruction.

Community Makes (1)

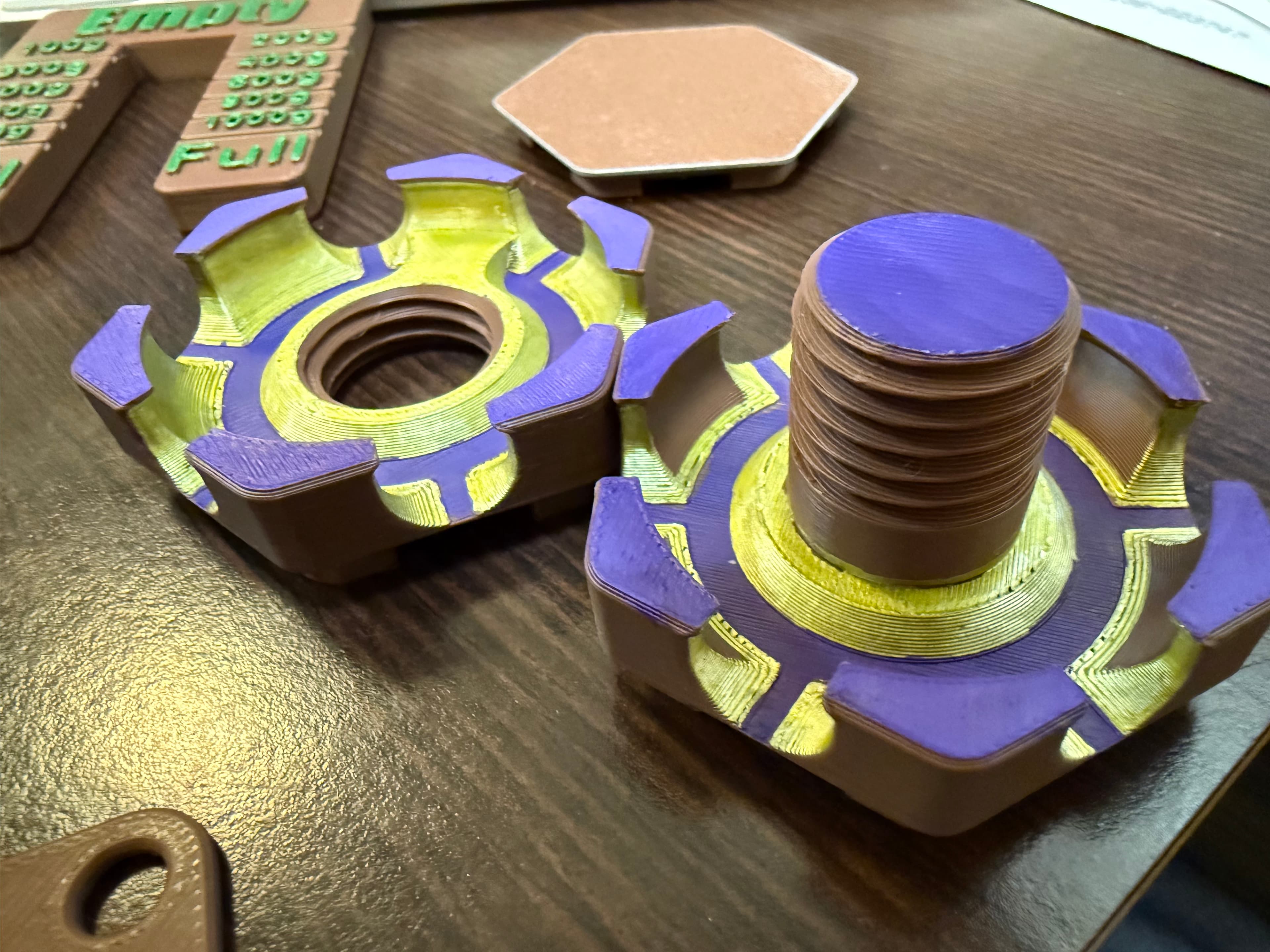

The threads fit beautifully!
The threads fit beautifully!


Community Makes (1)
The threads fit beautifully!
The threads fit beautifully!

Discussions
A
awazawazawaz
The threads fit beautifully!
The threads fit beautifully! 3d model
PrinterBambu Lab A1 mini
Print bed sizeX: 180 mm; Y: 180 mm; Z: 180 mm
MaterialPLA
Layer height0.2 mm
Infill density15 %
Christian D
cadeluca

I can't post a photo without a make, but looks like there is a small bit of geometry sticking out of the model on the star side.

Dan B
dapperrogue

Thanks for catching that - The extra geometry has been removed.
