Gear Star Sreampunk Desk Sculpture 3d model

Gear Star Sreampunk Desk Sculpture

181 downloads · 11 months ago · Hey, this is a motorized [Gear Star](https://than.gs/m/1101426) for your Desk! I used a very simple · View this model's project page to learn more

This model is restricted by licensing terms.

View license.

Description

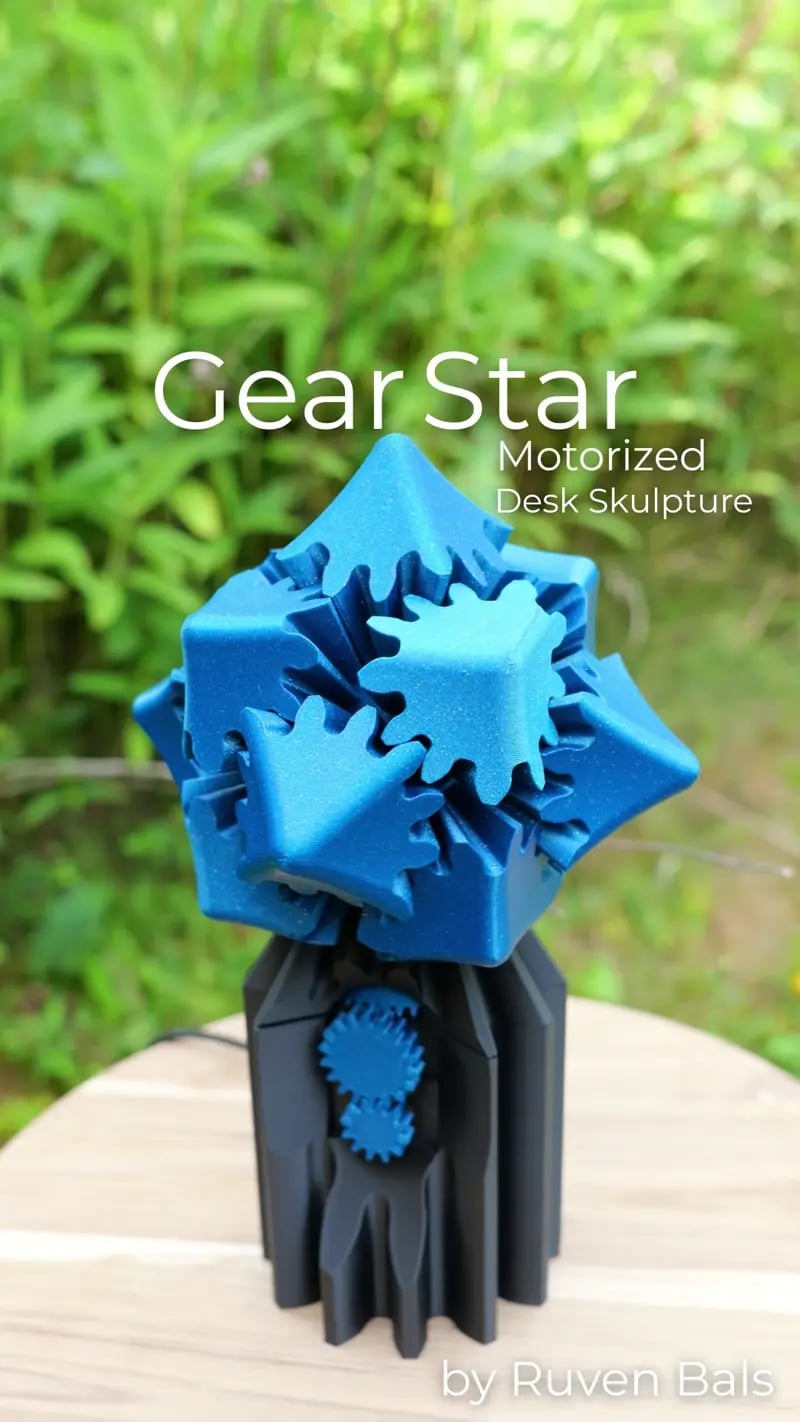

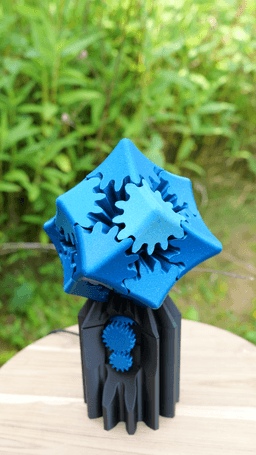

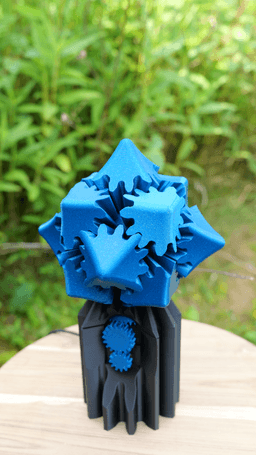

Hey, this is a motorized Gear Star for your Desk! I used a very simple USB Motor. No electronic knowledge needed.

You need: First off a motor. It dosnt go without. I used the "TT Motor DC5V 59RPM CCW Single Axis" you can get that on Aliexpress or an bambu labs size although 500% more expensive. They are roughly 1€. 1 bottom 1 Housing 1 Top Gear 1 Motor (linked on the model page) 1 Long Connector 1 Cone Gear 1 Motor Gear 1 bevel gear 1 Heart 6 Small Connectors 13 Big Connectors 8 Triangle Gears 5 Square Gears The Tools are optional that Batterie Pack too.

Print Settings: Standard no Supports for anything.

Assembly: I made a Assembly Video: https://youtu.be/nTw9M0AyzFM There is also a Assembly PDF Guide included in the download and you can also view it here: https://than.gs/pr/250287

Technical Data: One Desk Sculpture takes roughly 17h to print and 400g of Filament. I used Protopastas Mermaids Tale Meetallic teal and Polymaker PolyTerra Black Both are PLA

Happy printing!

Tags:

Community Makes (2)

Had some trouble with the connectors initially, but it was user error. I put the in the wrong way. Got it working now and it's cool.

Community Makes (2)

Discussions

anmarlow5 months ago

Had some trouble with the connectors initially, but it was user error. I put the in the wrong way. Got it working now and it's cool.

PrinterBambu Lab A1

MaterialPETG

tinker343310 months ago

I started with motors from Bambu, It initially would not spin but I reprinted the connector for the use bevil gear at 105% to get it to not be loose, and then i used silicone spray and then It worked, but just barely. Then i got in some motors from Aliexpress and now it runs great. Way more torque, even though specs are the same. https://www.aliexpress.us/item/3256809023602443.html And it has a much longer cord also.

tinker343310 months ago
