1x1x0.5 CU - Bin - Multibin Insert 3d model

1x1x0.5 CU - Bin - Multibin Insert

2K downloads · 2 years ago · "Multibin Inserts" are placed inside of "Multibin Shells" to create a "Multibin". Multibin Inserts g

This model is restricted by licensing terms.

View license.

Description

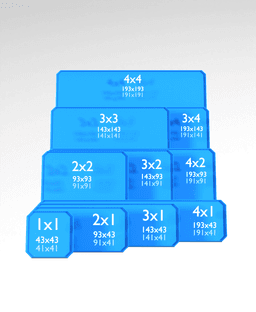

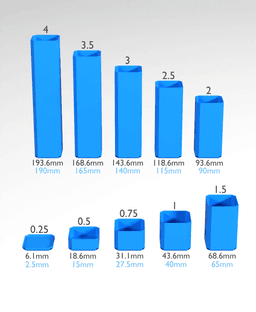

"Multibin Inserts" are placed inside of "Multibin Shells" to create a "Multibin". Multibin Inserts give the Shell the functionality to hold/organize specific items.

This Multibin Insert is simply a Bin. A Label Holder can also be attached to this Insert.

Multibin Inserts can be secured to the Shell using 10x2 N52 Neodymium Disk Magnets that are held in place with "Bottom Magnet Holders".

Learn more about this part at https://multiboard.io/knowledge-hub

Printing Guidelines:

Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.

The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.

For more information about printer settings, click here.

This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts, for creating the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io
