This is an attachment for The Horizontal Rail. The full required system can be downloaded below: Horizontal Rail

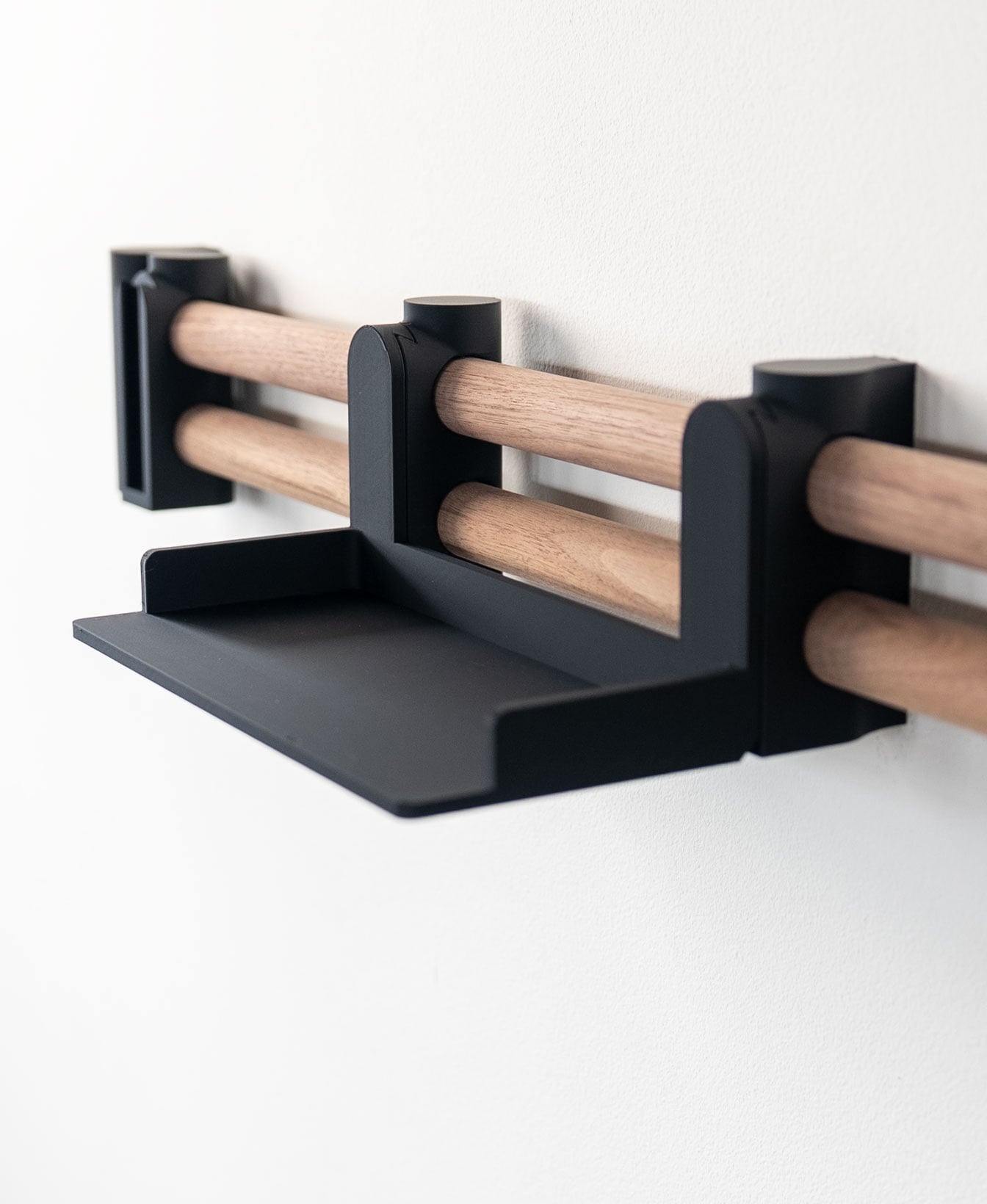

Shelves that attach to the Horizontal Rail system using two dovetail connectors. These shelves print at a 45 degree angle to avoid an hull lines and maximize strength.

Two sizes are included in the 3mf. You can also create your own size in the slicer by cutting the large shelf in half, then moving one of the halves into the other one, then merging them back together.

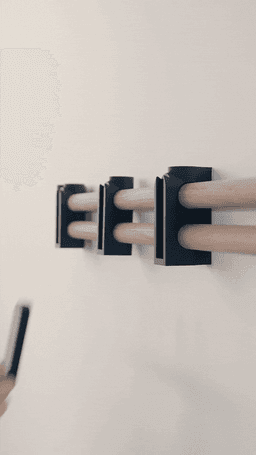

When attaching to the Horizontal Rail, I'd recommend using the middle mount as one of the attachment points as the middle mount is fixed to the wall and will provide more stability.

Supports None needed!

Scaling These can not be scaled as they are designed to fit the sliding dovetail system for The Horizontal Rail. That being said, you can make your own size by following the steps laid out above.

Orientation

• This shelf prints at a 45 degree angle to avoid an hull lines and maximize strength.

Print Settings

• .2mm layer height
• 15% grid infill
• 2 walls

Filament

Bambu Lab Matte PLA

Colors I used:

• Charcoal

Filament and non 3D printed items for this model can be found on my Amazon Storefront, linked here: https://linktr.ee/loftedgoods
