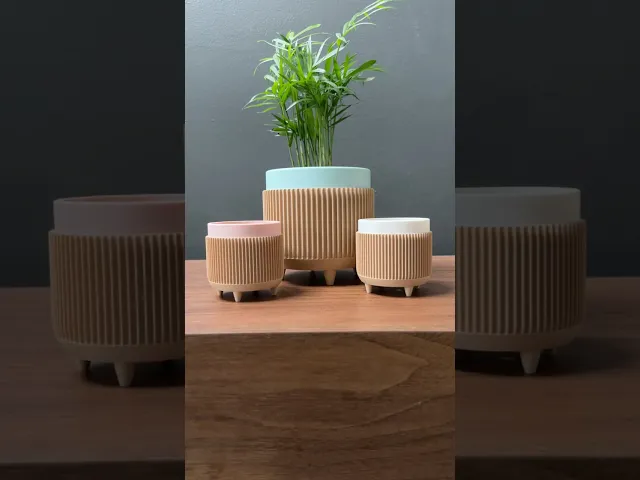

Planter with Legs - The Ellwood video thumbnail
Planter with Legs - The Ellwood 3d model
Planter with Legs - The Ellwood 3d model
Planter with Legs - The Ellwood 3d model
Planter with Legs - The Ellwood 3d model
Planter with Legs - The Ellwood 3d model
Planter with Legs - The Ellwood 3d model
Planter with Legs - The Ellwood 3d model
Planter with Legs - The Ellwood 3d model
Planter with Legs - The Ellwood 3d model

Planter with Legs - The Ellwood

Prints with no supports. I recommend using brims for the legs.

3 sizes included — 2.5", 4.5", and 6.5"

The legs need to be glued in to the base. I typically use Weld-On and a syringe to attached the legs but super glue works too!

Supports None needed!

Scaling Can be scaled although the clearances for the legs may be too loose or too tight if you scale too far in either direction.

Orientation The planter should have its bottom on the build plate. The legs should be upright with with tenon (peg) facing up. Use a brim for the legs.

Print Settings .2mm layer height 15% grid infill 2 walls

Filament & Hardware Filament: Bambu Lab Matte Latte Brown PLA & Bambu Lab Marble PLA

Filament and non 3D printed items for this model can be found on my Amazon Storefront, linked here: https://linktr.ee/loftedgoods

Tags:


Discussions
Scott A
scotta316

I'd also love to see this design updated with a drip tray.

Mark B
markbenda91

MEEP.

Ukegbu B. I
ukegbu.iroha

Could we get a drip tray for this?

Brian H
LoftedGoods

Sure!

Marky M
markymaarty

Two years later. STILL NO DRIP TRAY!

Kevin R
kev2181445

Wrong listing but ur products on there

Planter with Legs - The Ellwood

1.5K downloads · 3 years ago in  and
