Glasses case

1.6K downloads · 4 months ago · **A protective case for your glasses or sunglasses.** The mechanism allows for easy one-handed usage · View this model's project page to learn more

This model is restricted by licensing terms.

View license.

Description

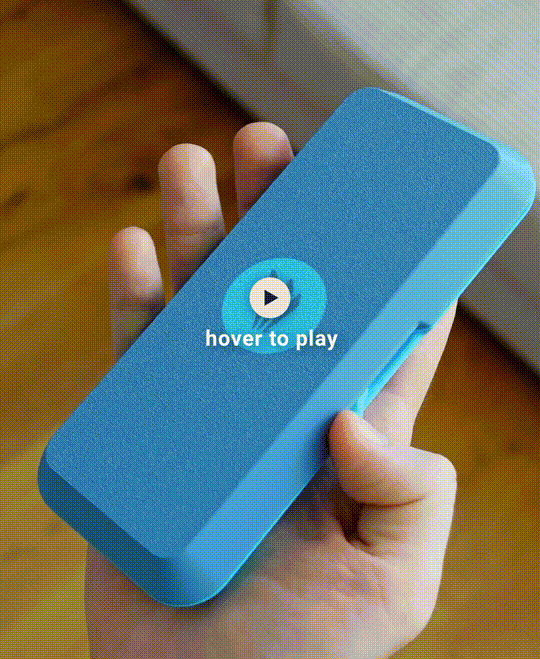

A protective case for your glasses or sunglasses. The mechanism allows for easy one-handed usage. The inner lining is printed from TPU and the outer shell from PLA, so this design can protect your glasses well.

While this does look complex it is actually super easy to print and make! The design does not require a multi-color printer. Single and multi-color printing models are included as STL and 3MF for all versions! They work with all current and usual multi color setups. When you use the interlocking files, you can even print it all on one build plate!

Sizes All sizes have a little wiggle room of 2 mm to X and Y direction.

150 x 50 x 21 mm
150 x 50 x 25 mm
150 x 50 x 30 mm
150 x 50 x 35 mm
150 x 50 x 40 mm
160 x 60 x 21 mm
160 x 60 x 25 mm
160 x 60 x 30 mm
160 x 60 x 35 mm
160 x 60 x 40 mm

What you need

Three 10x2 mm magnets – I used N38 strength (that’s like medium) but weaker or stronger one’s work, too.
PLA and TPU filament – I used TPU 95A, but others hardness works, too.
Glue – normal superglue does the trick perfectly

Instructions

Measure your glasses and choose your size
Print all parts, no special settings, default will do
Only for separate printing: Glue the TPU lining into the PLA top and bottom
Connect the two halves by closing it down and inserting a piece of filament as hinge
Cut the piece slightly shorter than the length of the hinge so it does not stick out. - - Push it in with another piece of filament.
Put a bit of glue into the pin hole, add the latch and press in the pin (the pin prints sideways now to be more durable)
Glue the first magnet into the latch
Pay attention to the magnetization of the two magnets that you add to the top. The magnet on the left-hand side (when you lay the assembly in front of you with the bottom towards yourself, case opened) has to attract the one in the bottom. The right magnet has to repel it.

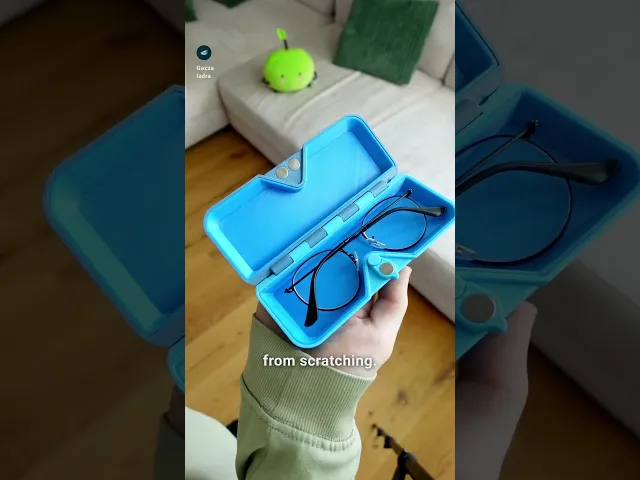

Have a look at my videos and photos for reference if anything is unclear!

Size assembled: 163 x 71 x 27 mm

Print settings Required build volume: 170 x 170 x 30 mm Material usage: 65 g PLA; 45 g TPU

Material: PLA and TPU Print direction: files are rotated correctly Support: none Nozzle size: 0,4 mm Line width: 0,4 mm Layer height 0,2 mm Infill: 15% Build plate adhesion type: none

Tags:

Community Makes (6)

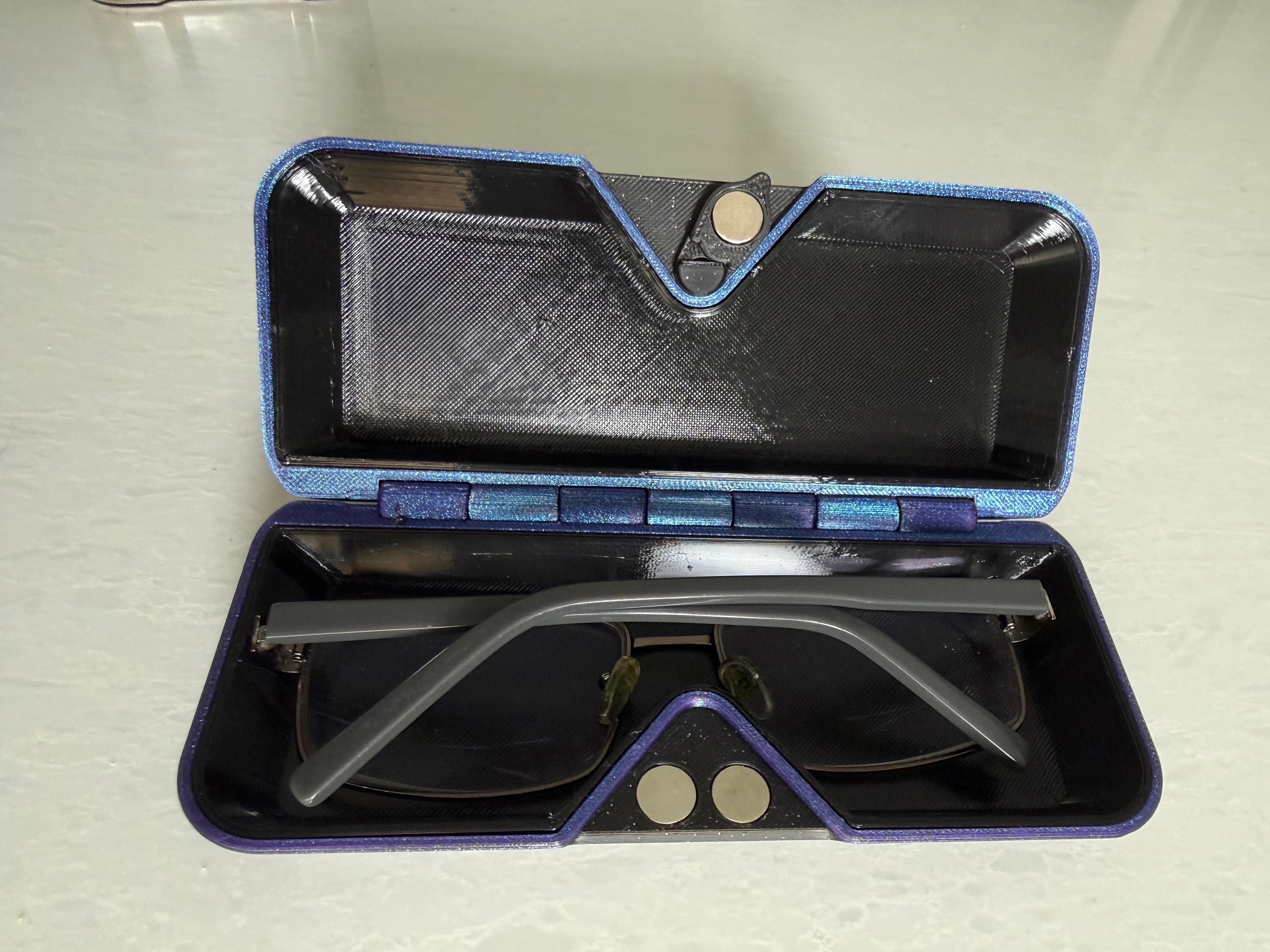

Happy Accident! Mis-judged how much black sparkly PLA I had, so had to swap to Purple midway thru. Looks great!
I used TPU for the inlay. Printed on K1-max in < 3 hours.

La imprimí para mi padre y lo usa a diario gracias.

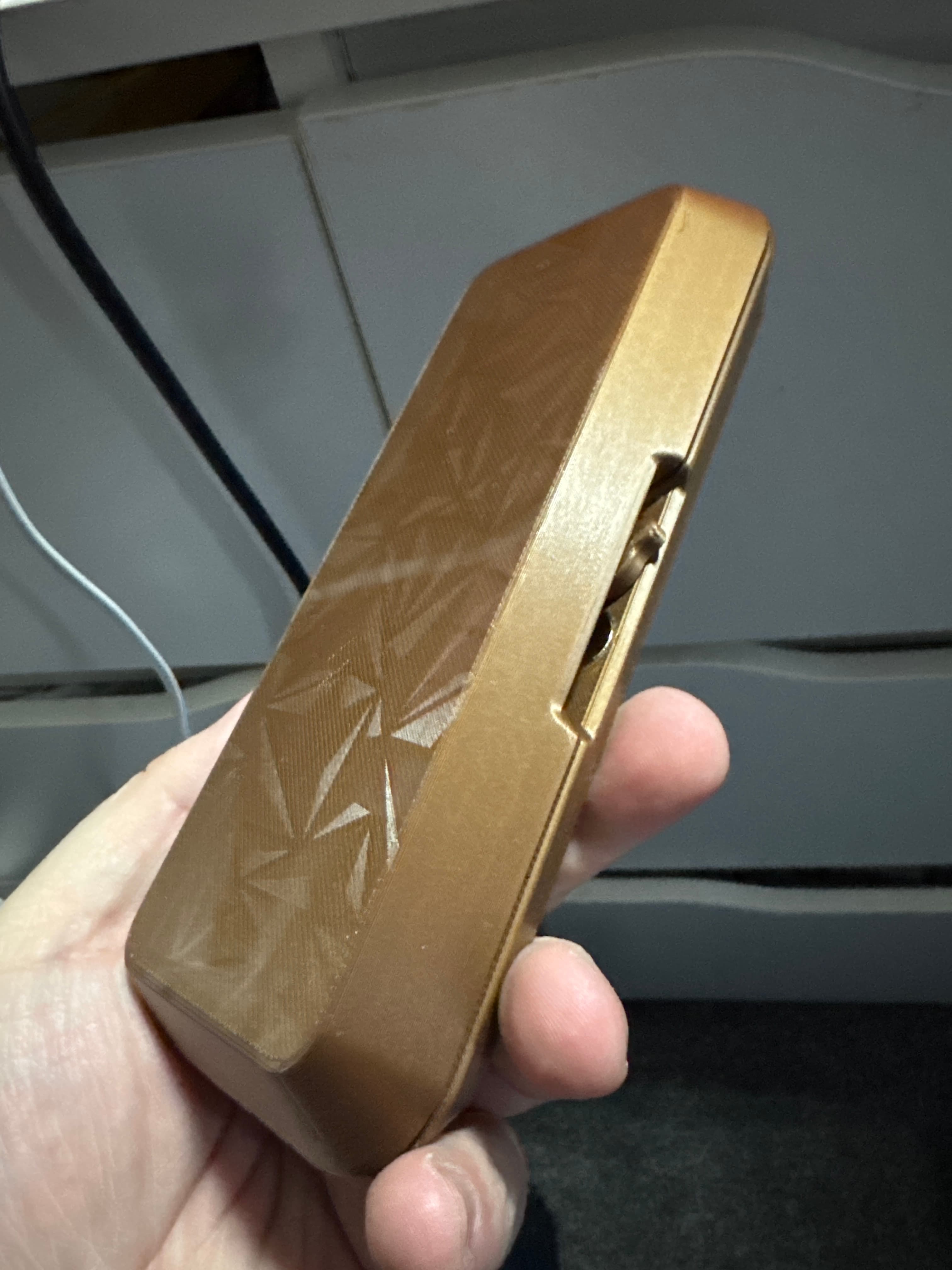

It’s a great idea and it printed so well. I need it to be about 12mm more for my glasses though as it just pushes too tight into them and then the mechanism doesn’t work as it should

Community Makes (6)

Discussions

JetteM4 months ago

With PLA Silk and diamond build plate

PrinterBambu Lab P2S

MaterialPLA

chrisrussellgray854 months ago

It’s a great idea and it printed so well. I need it to be about 12mm more for my glasses though as it just pushes too tight into them and then the mechanism doesn’t work as it should

PrinterAnycubic Kobra S1

Gazzaladra4 months ago

Four new versions with increased depth have been added, more coming soon! Thanks for the input!

clevercode27094 months ago

Looks great! Thanks!

ramses06101 month ago

La imprimí para mi padre y lo usa a diario gracias.

PrinterPrusa XL

MaterialPETG

Layer height0.2 mm

Infill density15 %

SupportsNone

lesteve4 months ago

PrinterUltimaker S5

MaterialPLA

Layer height0.15 mm

Infill density20 %

SupportsNone

JJ_T4 months ago

Great design! Too bad it doesn't fit my glasses. A 50% increase in depth would've been perfect. Looking forward for an XL version!

Gazzaladra4 months ago

Four new versions with increased depth have been added, more coming soon! Thanks for the input!

djm.nx0127 days ago

Happy Accident! Mis-judged how much black sparkly PLA I had, so had to swap to Purple midway thru. Looks great! I used TPU for the inlay. Printed on K1-max in < 3 hours.

PrinterCreality K1 Max

Print bed sizeX: 300 mm; Y: 300 mm; Z: 300 mm

MaterialPLA

Layer height0.2 mm

SupportsNone

richard.kappy4 months ago

Great design and was looking forward to using it but it needs to be larger, to at least 37mm. Mine don't fit

Gazzaladra4 months ago

Thanks for the input! 37 seems to be quite common!

richard.kappy4 months ago

When will the new version be available?

Gazzaladra4 months ago

Now :)

Autumn Dreams4 months ago

Great design and nice in the pocket at well.

Ideally, if it were larger in depth by about another 10mm to 37mm so that my glasses wouldn't be squashed , it would be a great fit for my glasses and still be slim enough for the front jeans pocket.

Gazzaladra4 months ago

Thanks for the measurements, size updates coming soon!

Gazzaladra4 months ago

Four new versions with increased depth have been added, more coming soon! Thanks for the input!

katz454 months ago

another data point for the XL version. mine are 35mm

Gazzaladra4 months ago

Thank you!

Gazzaladra4 months ago

Four new versions with increased depth have been added, more coming soon! Thanks for the input!
