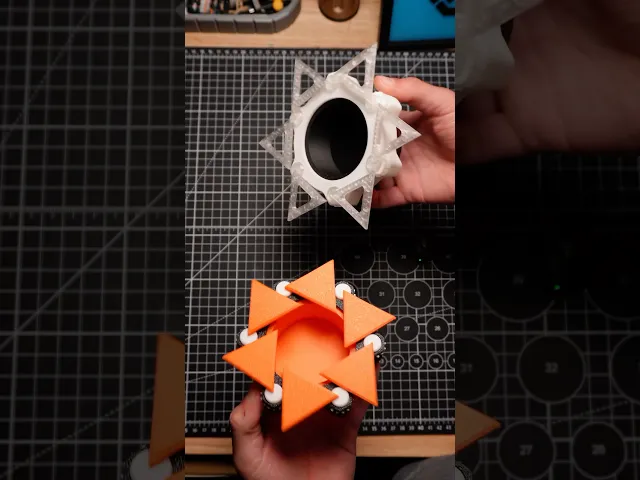

Spinning Gear Box video thumbnail
Spinning Gear Box 3d model
Spinning Gear Box 3d model
Spinning Gear Box 3d model

Spinning Gear Box

Subscribe to download for $14.99 USD
Get access to this model and 15,000+ more

A mechanically spinning gear box, fully 3D Printed. I provided 2 different versions for the doors, one is hollow and one solid.


Discussions
Kevin B
kbrowne97

Very cool design. Did you glue the triangles into place? I find they get caught on the adjacent gearheads frequently because they're able to sag in the z direction.

Carter
cartyski

Thank you. I didn’t need glue, mine fit tight on both prints.

Eskimo P
Eskimo Pie

The difference is in your printer calibration. It's rare that two printers will print exactly the same. So with any model on any platform there will be some variation between printers.

Lee D
rassdesign

This design is nifty, but poorly engineered, and here's why:

  • The triangle connecting points are too small and break off easily, leaving you to reprint a triangle and a small gear, as the connecting point gets stuck in the gear after breaking off.
  • There is no build order or, orientation order provided in the description of the file or the youtube video. You're supposed to figure out yourself how to assemble it.
  • The triangles sag in the z direction, so they do catch on the opposing gears.
Reeperru R

Browser is saying it is a virus when downloading

Carter
cartyski

Not sure why that would be. Working on my end

Reeperru R

Got it working eventually. Ready to start printing.
