ORIGINAL Description: This is a Modular Display Rack I created because I needed to display my Paracord and 3D Printed Dragon Keychains at a local Craft Show. I had been using a Pegboard Wall but thought it was too big/bulky. So I created this Spinner to use the large collection of existing Pegboard Hooks I still had. After several months of testing and several spools of filament later I've come up with this working model!

---

✨ The Pegboard Display Spinner Has Evolved! ✨

One of my very first releases back in September 2022, the Pegboard Display Spinner quickly became a fan favorite! 🥳 But along with all the love came a long list of awesome suggestions from you all.

Now in its 3rd iteration and officially renamed the Modular Display Spinner, this system has been expanded with 50+ pieces to make it truly modular! 🔧✨ Built around an 8mm steel linear rod (tested up to 1000mm tall), it creates a sturdy display that can be customized into just about anything you can imagine. 🚀

Create setups like: 🔄 Display Carousel 🌀 Spinner 🍽️ Lazy Susan 🔑 Keychain Display 🐉 Dragon Rack

or any combination your creativity can dream up! ✨

⚠️ Unlike many fully printable display carousels, this design uses an 8mm steel or chrome linear motion rod at its core. This gives the spinner extra strength, stability, and durability, making it far more sturdy and resistant to tipping compared to fully printed keychain display designs. 💪 Because of the steel rod support, the display stays stable even when built tall or heavily loaded with prints.

---

59 Files Included in this release:

Bases:

• Tall Base (in 4 Tolerances)
• *NEW Short Base (in 4 Tolerances)
• *NEW Tall Base with Business Card Holder (in 4 Tolerances)

Pegboard:

• Pegboard Hexagon Holder (redesigned)
• *NEW Pegboard Risers in 4 Sizes (Stackable with each other and the Holder)

Keychain:

• Keychain Carousel Small (220mm)
• *NEW Keychain Carousel Medium (258mm)
• *NEW Keychain Carousel Large (305mm)

Dragon Rack:

• *NEW Dragon Rack Small (198mm), Medium (253), Large (298mm)
• *NEW Dragon Hangers Small (55-60% CW Dragons), Medium (70-80% CW Dragons), Large (90-100% CW Dragons) Attach to first link of Dragon with 1/4" Zip Ties
• *NEW Dragon Rack Large (298mm) Split .3mf (Experimental to fit smaller 256mm Plates)

Lazy Susan Bins/Shelves:

• Octagon Shelf 196 & 248mm
• Round Shelf 204mm & 248mm
• *NEW Octagon Bin with 0/2/4 Dividers - 196 & 248mm
• *NEW Round Bin with 0/3/4/5 Dividers - 204 & 258mm

Accessories:

• Cylinder Risers in several sizes (You can resize Z to an exact size needed)
• Top Cap
• Base Tolerance Tester 8.0, 8.1, 8.2mm (Added a 4th option for 8.3mm) [The Base is the only part that requires a test, all other pieces are 8.5mm holes]
• *NEW Top Cap Sign Holder and Hexagon or Rectangular Sign (Print Two of these to fit back to back in Top Cap Sign Holder )

➡️ Recommended Print Settings

Filament - PLA/PLA+ should be fine aslong as you don't use in direct sunlight/heat outdoors. Otherwise its recommended to print in PETG or ABS

Layer Height - 0.2mm (recommended)

Walls and Infill - Minimum PETG/ABS 2 Walls and 10% (Recommended for PLA 3 Walls, 15%+)

For Signs - Only one wall on first layer: True (recommended)

Scale - 100% (Everything is modeled with tight tolerances and should not need to be resized) (You can resize the Cylinder Risers Z to get an exact Fit.

Hull Lines - I tried my best to eliminate Hull Lines within the Model itself with negative voids, however the Shelves and Bins may have slight Lines on the base that do not effect the overall Print Quality - You can also try changing the printing order to Outerwall/Inner Wall Setting

---

➡️Notes:

Minis/Keychains/Dragons used in Pictures are not included and only used as examples. Dragons From Cinderwing3d, and Axolotl and Frog Flexis are from the Starmouse3d Collab with me!

---

➡️ Credits: Adding Attributions:

Printing my item? I would really appreciate it, if you tag me and credit me @bucklenshackle on Socials.

---

➡️License and Modifying:

• You are authorized to: Print this item for personal use, give away a printed Display as a gift, or donate to charity.

• What is not allowed: No Selling, No sharing of files, No Adapting or remixing of my file, no modifying this file with a Logo.

• What is allowed: Modifying the Sign with any Text & Logo. Also Z resizing the Cylinder Risers to get the perfect fit.

Also available to Patreon Members at the BNS3d Patreon!

If you would like to purchase the Commercial Use Model instead click here.

---

➡️Authorized Sellers For a list of all their socials Click Here: Authorized Sellers List

Authorized Sellers will be listed on my website when you purchase the commercial license. Please contact me to get your details added.

---

➡️UPDATES:

• V.1 September 18, 2022. Original File Released.
• V.2 November 10, 2022. Redesigned all files. Added Base, Spacers of Different Lengths and a Spokes Version.
• V.2.1 March 11-13, 2023. Added Base Tolerances, a Base Tolerance Test and a 10mm an 15mm Spacer.
• V.2.1 August 8, 2023. Added Larger Spokes, Round Shelf and Octagon Shelf to fit printers with larger plates of 256x256.
• V.2.1 April 13, 2024. Added Dragon Racks, Hang your Dragons Vertically! Large and Small included. (WORK IN PROGRESS)
• V.3 March 8, 2026. Completely Redesigned with 59 Files including New Bins, Pegboard, Dragon Rack, Biz Card Base plus more Sizes.

---

➡️Authorized Sellers are the only ones allowed to sell these prints of these files. Authorized Sellers List

• Buckle N' Shackle From Toronto, ON, Canada Bio Link, Facebook, Instagram, Tiktok, Bucklenshackle.com

---

➡️Videos:

Here’s a TikTok of the V.1 Spinner in action! (Early Test Model): https://www.tiktok.com/@bucklenshackle/video/7145460051065523461

Here’s a How to Video on TikTok of the V.2 Spinner!: https://www.tiktok.com/@bucklenshackle/video/7164606539838360837

Here’s an Assembly Video on TikTok of the V.2.1 Spinner! (Current Model): https://www.tiktok.com/@bucklenshackle/video/7211548693663714565

Its Modular! Here's an all Pegboard Spinner Version: https://www.tiktok.com/@bucklenshackle/video/7213896005668900102

Its Modular! Here's a Short Spokes & Shelves Version: https://www.tiktok.com/@bucklenshackle/video/7265752270820756741

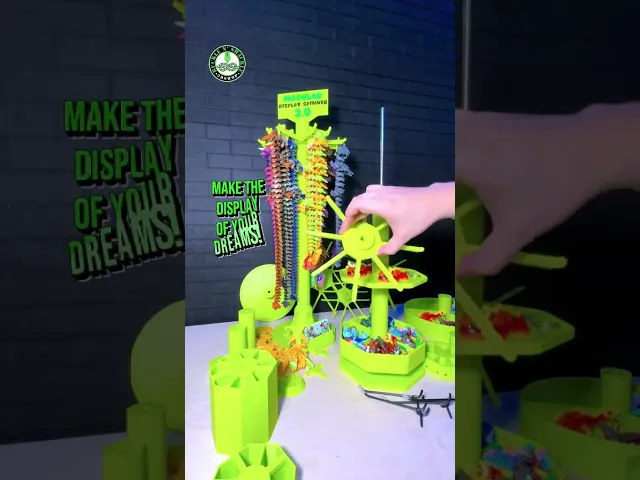

3.0 Release Video! https://www.instagram.com/p/DVodktWEeWj/ https://www.tiktok.com/@bucklenshackle/video/7614940551174966548 https://www.youtube.com/shorts/OI5hQTdvvLQ
