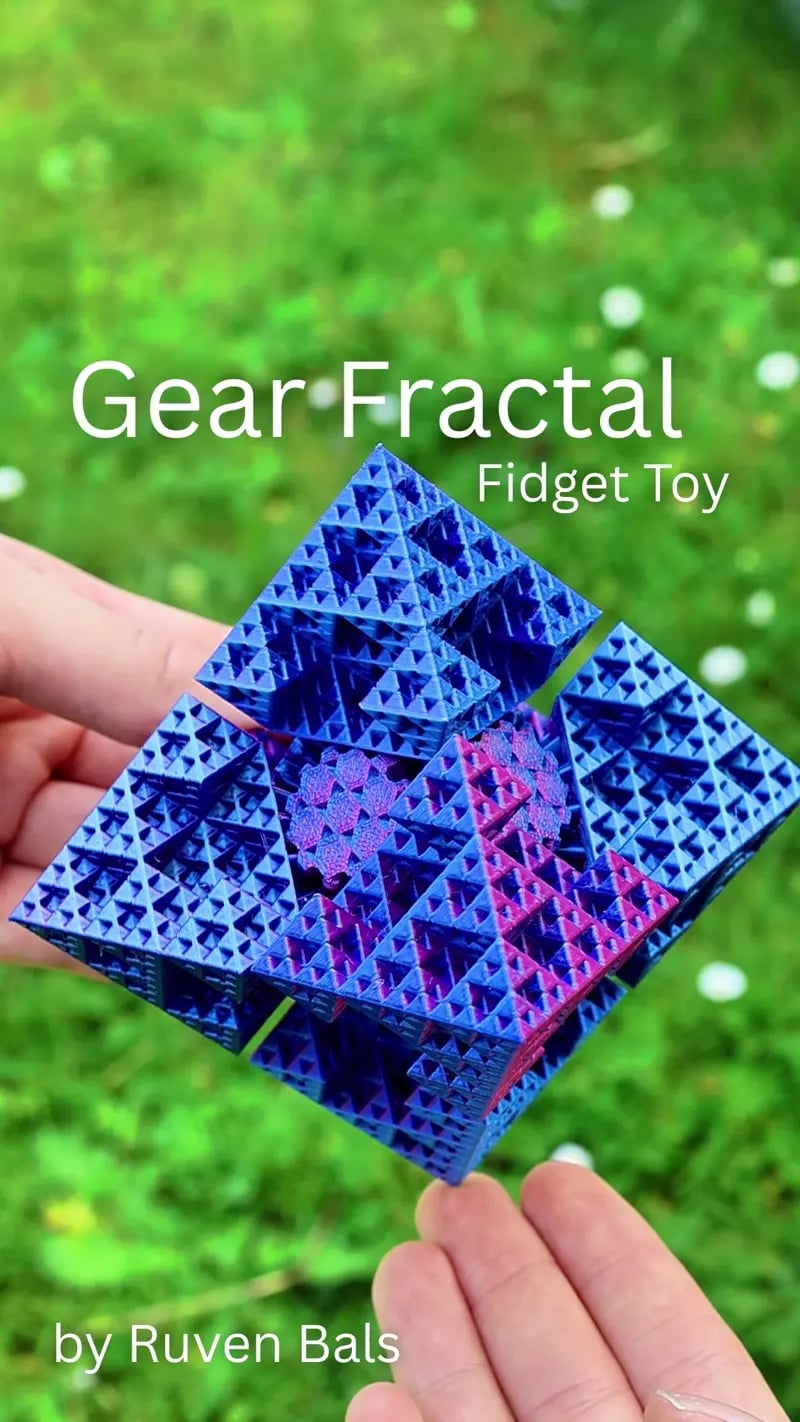

Gear Fractal Fidget Toy

560 downloads · 1 year ago · Hey, this is a mechanical version of the Shirpinsky Pyramid. Im going to make a motorized version in · View this model's project page to learn more

This model is restricted by licensing terms.

View license.

Description

Hey, this is a mechanical version of the Shirpinsky Pyramid. Im going to make a motorized version in a while.

You need: 6 Fractal gears of your chosen size 8 Triangle Gears 14 Connectors 1 Heart The Tool is optional but make the assembly easier.

Print Settings: Nothing needs supports except for the Fractal gears. I did Support paint them on so that you can slice the wile with manual supports enabled.

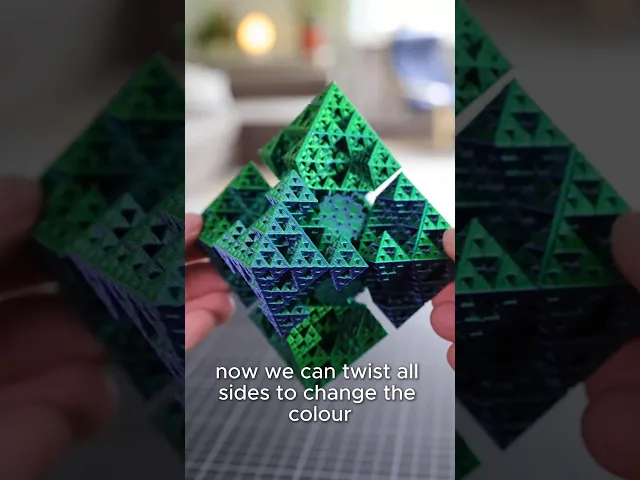

Assembly: I made an Assembly Video: https://youtu.be/wedLa-mneYc. There is also a PDF guide that you can find above.

Troubleshooting: if anything goes wrong, you can watch this Video: https://youtu.be/mJWSU6X7Piw

Technical Data:
