Box / Travel bag

1K downloads · 3 years ago · **A little box intended for travel but also useful for organizing stuff at home.** I use it as a tra

This model is restricted by licensing terms.

View license.

Description

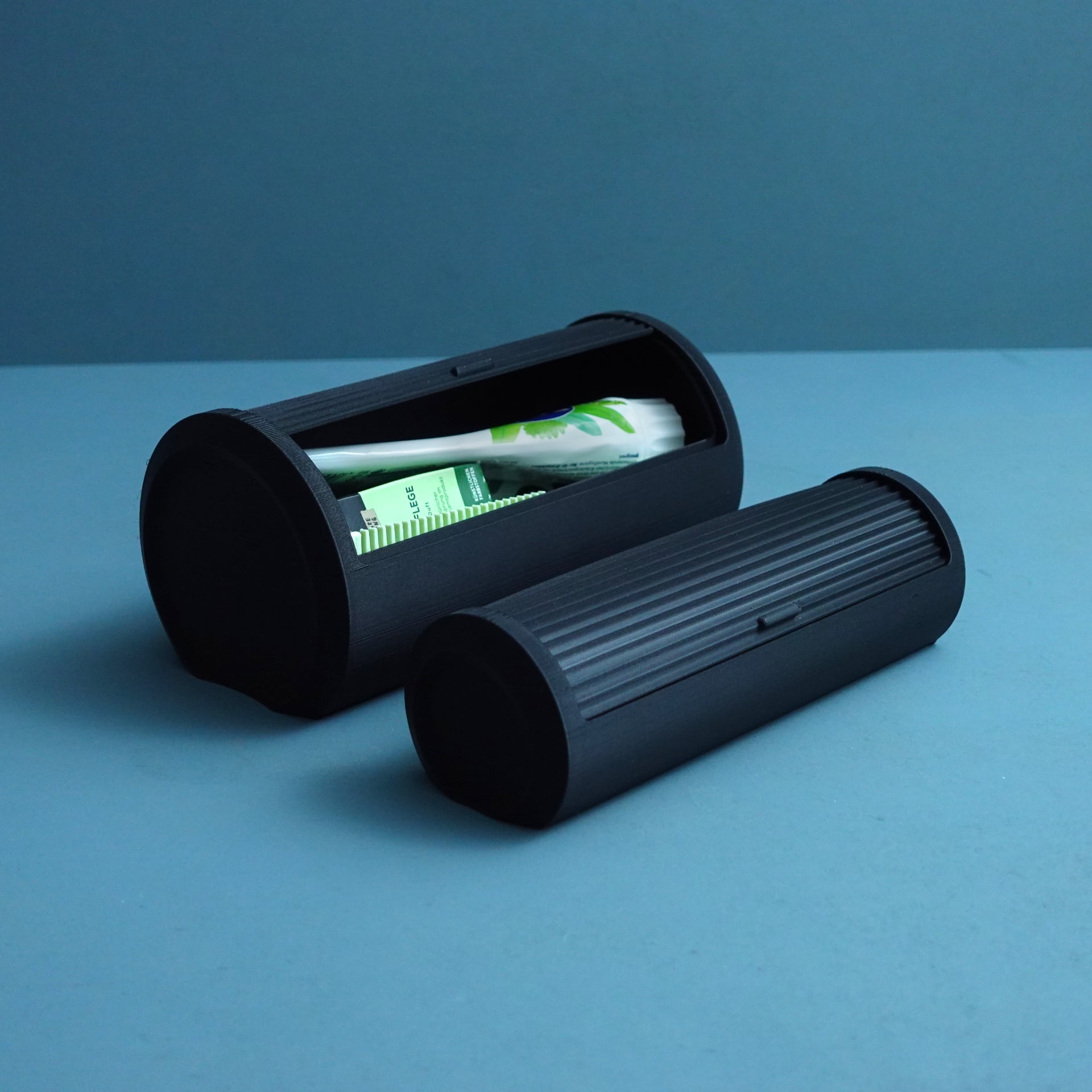

A little box intended for travel but also useful for organizing stuff at home. I use it as a travel toiletry bag.

Included versions:

Body_big: The Body with inner dimensions of 200mm length x 90 mm diameter
Lid_big_default: The Lid for the big body
Lid_big_more_clearance: The lid for the big body with a little more clearance for messy printers
Body_small: The Body with inner dimensions of 200mm length x 50 mm diameter
Lid_small_default: The Lid for the small body
Lid_big_more_clearance: The lid for the small body with a little more clearance for messy printers

Instructions

Print both parts
Bend the lid until it fits the diameter of the body. Don’t be shy, the living hinge can take it!
Insert the lid from the back
Enjoy!

Print settings Required build volume: 220 x 220 x 120 mm Material usage: 180g big; 100g small Print time:18h big; 11h small

Material: PLA Print direction: stls are rotated correctly, check images Support: none Nozzle size: 0,4 mm Line width: 0,4 mm Layer height 0,2 mm Outer walls: 3 Infill: 15% Build plate adhesion type: none

Tags:

Community Makes (1)

Discussions

mechanics 4e42 months ago

Printed the small version and both kinds of clearance of the lid. Default clearance is more stable IMHO. I applied a small amount of color to the ribs of the lid . But just on one mountainside. That has an optical effekt of colorchange depended by the angle of the viewer. You can guess watching the pictures. This makes you look at and touch the box more often than just with plain colour. On one Lid I added a logo in BambuSlicer. To fit in the Box I heated the lids to 85 DegreesCelsius on the heatbed. Then bent it over a suitabe template. All was printed in Bambu PETG-HF Blue and Orange and a little grey for the handles. They will be containers for easterpresents.

Sweet Inspiration1 year ago

I tried printing this several times, used recommended settings, then adjusted for issues, tried a few different filaments, and I just can not get it to work. The lid is so thin that I have a hard time getting it off the bed without ripping it. The ridges there also are not sturdy or adhering well. I've tried compensating for it in settings and no dice. The base will print but it doesn't print evenly, and I dont have this issue with other print files I've done lately. Help?
